Product Overview

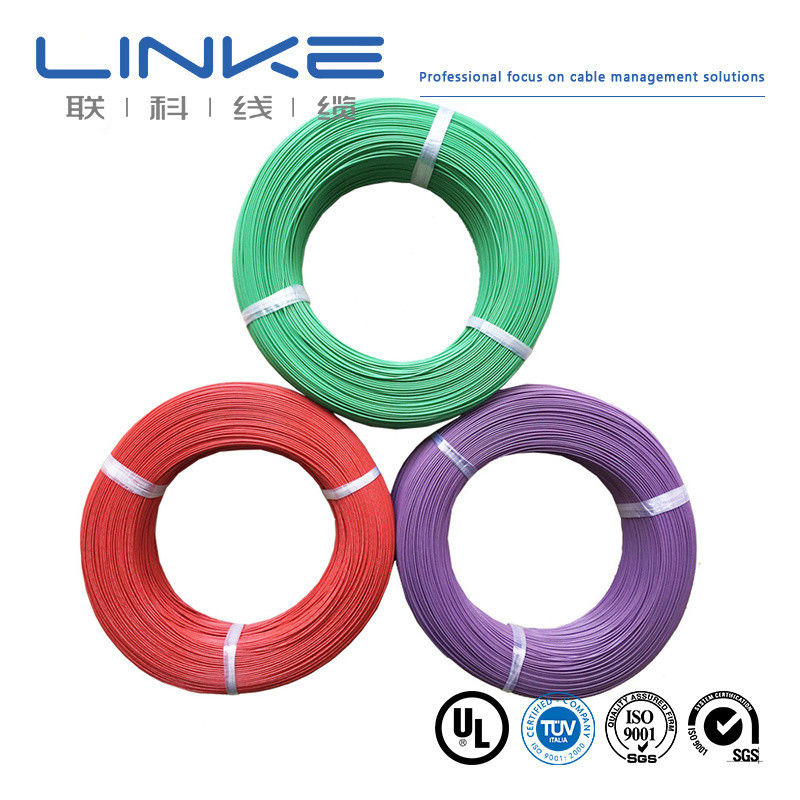

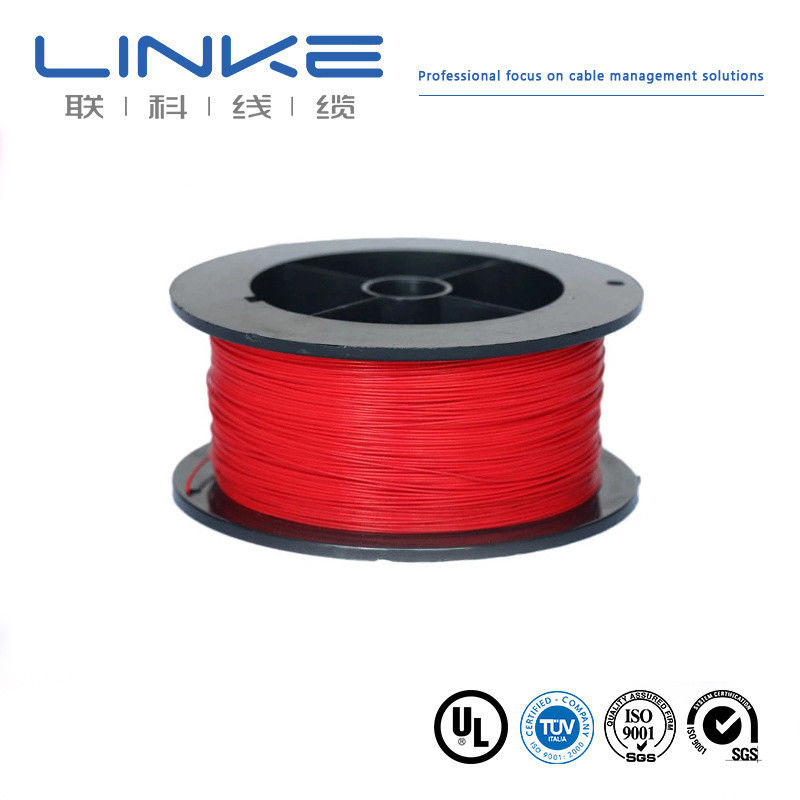

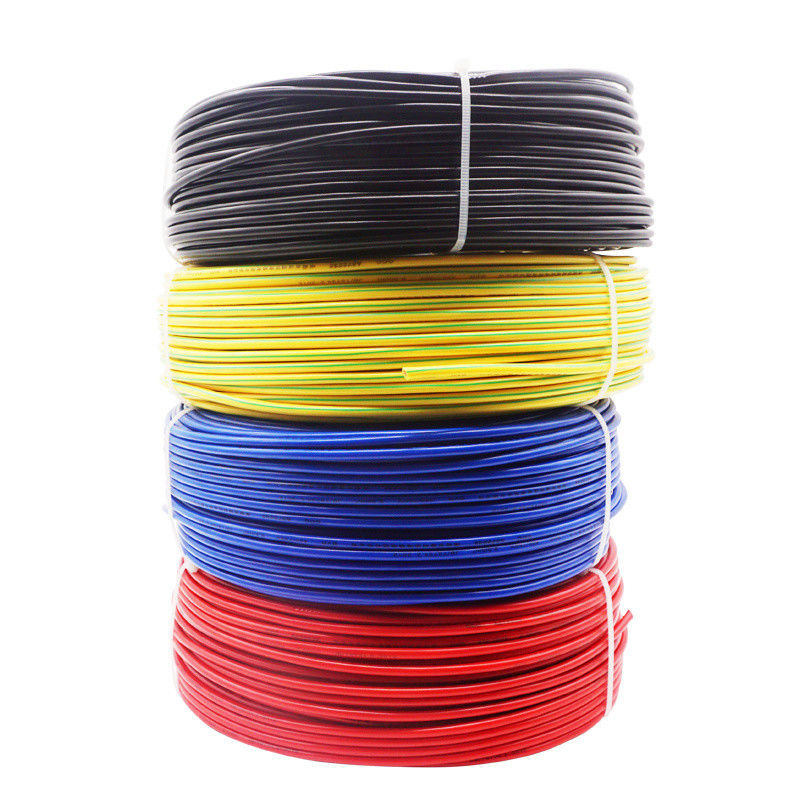

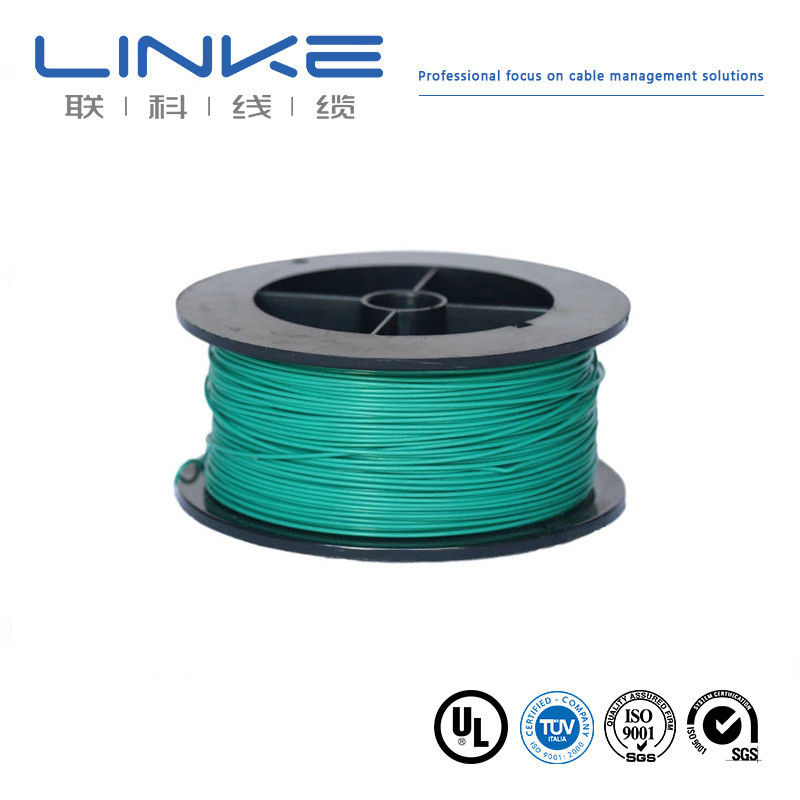

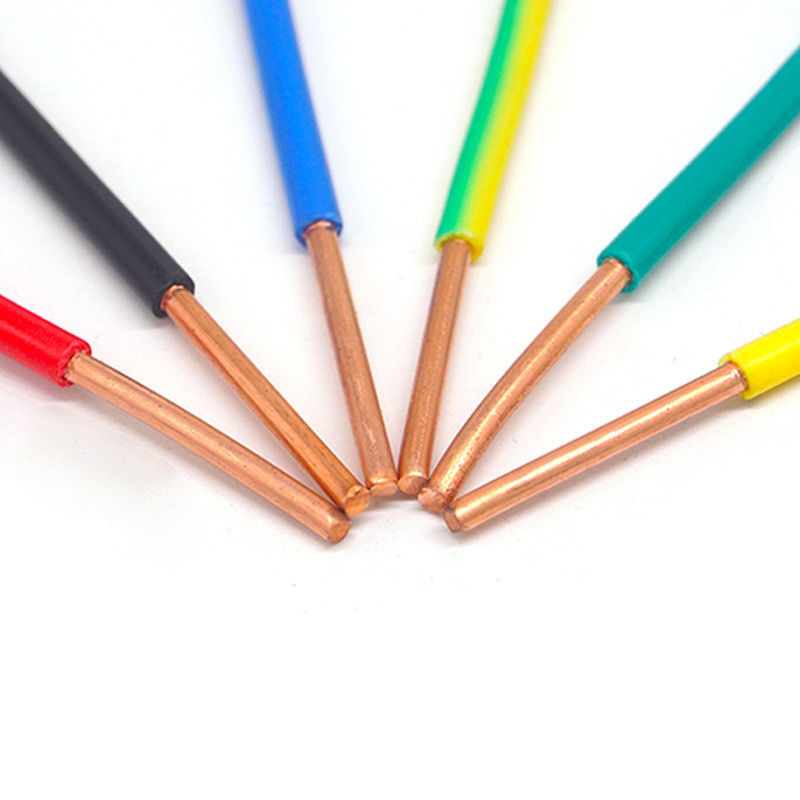

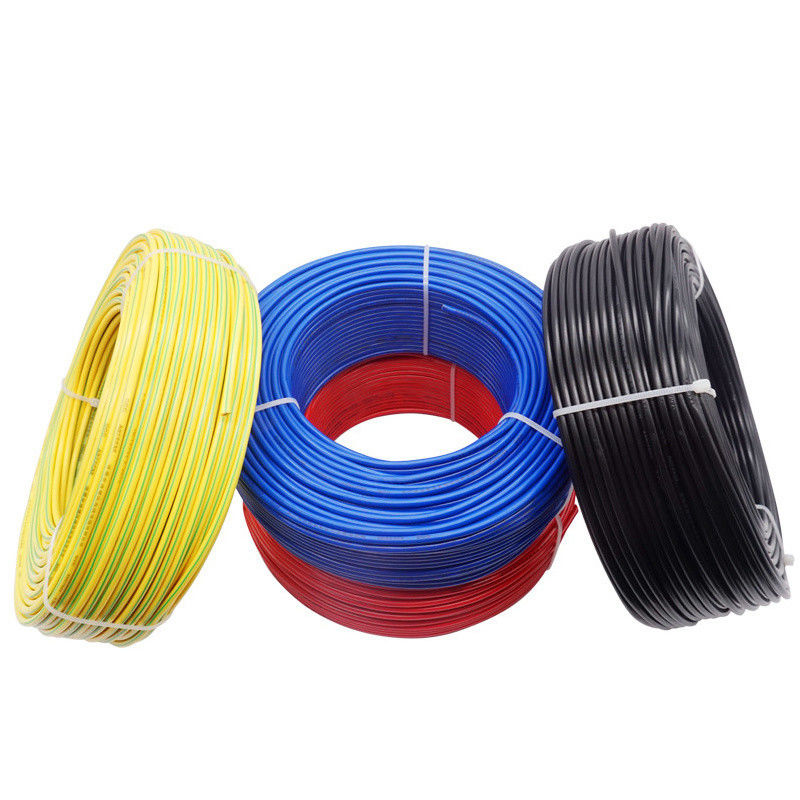

Round Wire Copper PVC House Wiring Electrical Cable and Wire Building Wire available in 1.5mm, 2.5mm, 4mm, 6mm, and 10mm sizes for reliable electrical installations.
Product Standards & Features
Product Standards
Manufactured according to GB/T19666-2005, GB/T5023-2008, and JB/T8734-2012 standards for flame-retardant and fire-resistant cables.
Key Cable Features
- Voltage rating: Uo/U is 450/750V, 300/500V
- Temperature rating: 105°C cables withstand up to 105ºC, other models up to 70ºC
Applications
Suitable for power plants, household appliances, instruments, and telecommunication equipment with rated voltage of 450/750V and below.
Technical Specifications
| Voltage (V) |
Section (mm²) |
Conductors |
Max Diameter (mm) |
DC Resistance (Ω/km) |
Insulation Resistance (MΩ*km) |
Current Capacity (A) |
Weight (kg/km) |
| 300/500 | 0.5 | 1 | 2.3 | 36 | 0.015 | 13 | 8.3 |
| 300/500 | 0.75 | 7 | 2.6 | 24.5 | 0.012 | 17 | 10.9 |
| 300/500 | 0.75 | 1 | 2.7 | 24.5 | 0.014 | 17 | 11.8 |
| 300/500 | 1 | 7 | 2.8 | 18.1 | 0.011 | 20 | 13.7 |
| 300/500 | 1 | 1 | 3 | 18.1 | 0.013 | 20 | 14.8 |
| 450/750 | 1.5 | 1 | 3.2 | 12.1 | 0.011 | 25 | 20.0 |
| 450/750 | 1.5 | 7 | 3.3 | 12.1 | 0.01 | 25 | 21.3 |
| 450/750 | 2.5 | 1 | 3.9 | 7.41 | 0.01 | 34 | 31.5 |
| 450/750 | 2.5 | 7 | 4 | 7.41 | 0.009 | 34 | 34.4 |
| 450/750 | 4 | 1 | 4.4 | 4.61 | 0.0085 | 44 | 46.8 |
| 450/750 | 4 | 7 | 4.6 | 4.61 | 0.0077 | 44 | 48.1 |
| 450/750 | 6 | 1 | 5 | 3.08 | 0.007 | 58 | 65.1 |
| 450/750 | 6 | 7 | 5.2 | 3.08 | 0.0065 | 58 | 68.8 |
| 450/750 | 10 | 7 | 6.7 | 1.83 | 0.0065 | 79 | 111 |
| 450/750 | 16 | 7 | 7.8 | 1.15 | 0.005 | 111 | 166 |
| 450/750 | 25 | 7 | 9.7 | 0.727 | 0.005 | 146 | 263 |
| 450/750 | 35 | 7 | 10.9 | 0.524 | 0.004 | 180 | 356 |
| 450/750 | 50 | 19 | 12.8 | 0.387 | 0.0045 | 228 | 487 |
| 450/750 | 70 | 19 | 14.6 | 0.268 | 0.0035 | 281 | 679 |
| 450/750 | 95 | 19 | 17.1 | 0.193 | 0.0035 | 344 | 932 |
| 450/750 | 120 | 37 | 18.8 | 0.153 | 0.0032 | 397 | 1163 |
| 450/750 | 150 | 37 | 20.9 | 0.124 | 0.0032 | 456 | 1424 |
| 450/750 | 185 | 37 | 23.3 | 0.0991 | 0.0032 | 519 | 1789 |
| 450/750 | 240 | 61 | 26.6 | 0.0754 | 0.0032 | 592 | 2335 |
| 450/750 | 300 | 61 | 29.6 | 0.0601 | 0.003 | 685 | 2924 |
| 450/750 | 400 | 61 | 33.2 | 0.047 | 0.0028 | 799 | 3750 |
Certifications & Compliance
Our products comply with UL1569, 2095, 2103, 2104, 2129, 2463, 2576, 2586, 2587, 2661, 2919, 10012, 10070, 10269, 10483, 20886, and 21664 standards. We are ISO9001 and ISO13485 certified.
CNR Appliance Wiring Material
- Extruded PVC Insulated Single, rated 105ºC, 1000V, Class I, Group A, B, or AB, FT1 and/or FT2
- Extruded PVC Non-integral Jacketed Cable, rated 105°C, 1000V, Class I, Class or Class I/II, Group A, B, or AB, FT1 and/or FT2
Frequently Asked Questions
1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first beginning to the last. Welcome to visit us. We'll pick you up in Shenzhen.
2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.
3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy. You'd better order a suitable quantity to avoid the high freight. Sea transportation is the best option.
4. Can I get a discount?
It depends on your quantity. We can make a discount and afford the freight. Please kindly contact us.
5. Does your company accept OEM production?
Yes, we can print your company name and even customize the quality card to promote your company.
